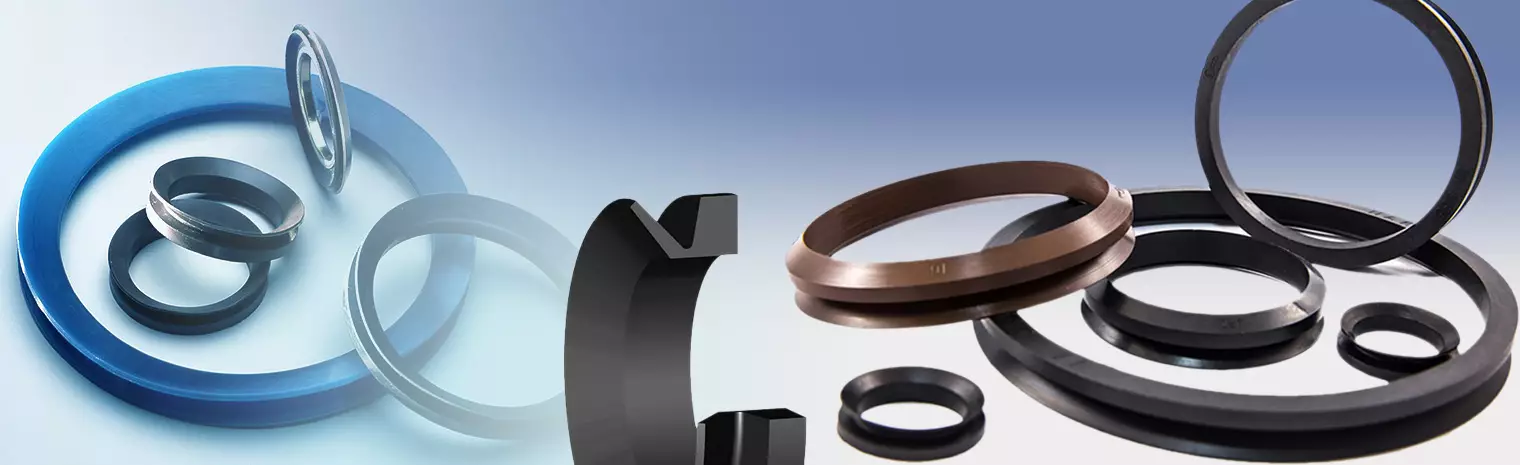

A V-Ring from Rubber Craft is a premium solid rubber seal designed for shafts to effectively block dirt, moisture, and other contaminants from infiltrating oil seals, housings, or any critical area, while reliably retaining lubricants. Engineered for precision, it stretches over the shaft to form a secure seal, with its flexible lip creating a light, yet effective, seal against the counterface at a right angle to the shaft.

Rubber Craft’s V-Rings perform exceptionally on their own and deliver outstanding results when paired with rotary shaft seals, significantly extending the lifespan of bearings, oil seals, and shafts. For enhanced durability, Rubber Craft’s Gamma Seals offer the same high-performance sealing as V-Rings, reinforced with a protective metal case for added strength and reliability.



VL V-Ring: Available from 99MM ID to 540MM ID. They have a short mounting length and are designed for use when the sealing house is limited or as part of a labyrinth sealing application

Benefits

• Simple – Little prep required when installing. Simply ensure the shaft is clean and try, apply a film of lubricant to the v-ring lip, and slide the v-ring down until the flexible lip contacts the counterface. The lip presses against counterface with little pressure and friction
• Economical – Wide tolerances allow one v-ring to fit multiple shaft sizes and to account for substantial shaft misalignment and eccentricity in the shaft. Its durability ensures a long work life and that it won’t be damaged during installation
• Versatile – Performs well in dry applications, on rotating shafts and oscillating shafts, and at high speeds over 3000 FPM.









SIZE	Shaft Range (mm)	ID (mm)	OD (mm)	Width (mm)
VL-110	105-115	99	112	10.5
VL-120	115-125	108	121	10.5
VL-130	125-135	117	130	10.5
VL-140	135-145	126	139	10.5
VL-150	145-155	135	148	10.5
VL-160	155-165	144	157	10.5
VL-170	165-175	153	166	10.5
VL-180	175-185	162	175	10.5
VL-190	185-195	171	184	10.5
VL-200	195-210	182	195	10.5
VL-220	210-233	198	211	10.5
VL-250	233-260	225	238	10.5
VL-275	260-285	247	260	10.5
VL-300	285-310	270	283	10.5
VL-325	310-335	292	305	10.5
VL-350	335-365	315	328	10.5
VL-375	365-385	337	350	10.5
VL-400	385-410	360	373	10.5
VL-425	410-440	382	395	10.5
VL-450	440-480	405	418	10.5
VL-500	480-530	450	463	10.5
VL-525	510-540	472	485	10.5
VL-550	530-580	495	508	10.5
VL-600	580-630	540	553	10.5
